Eurobike Hot News

Less than a week to Eurobike trade fair and WE are so excited to present to cycling crew our 2020 range news.

Here below some of the most important products we’ll show this year:

ACR AND SCR SYSTEM

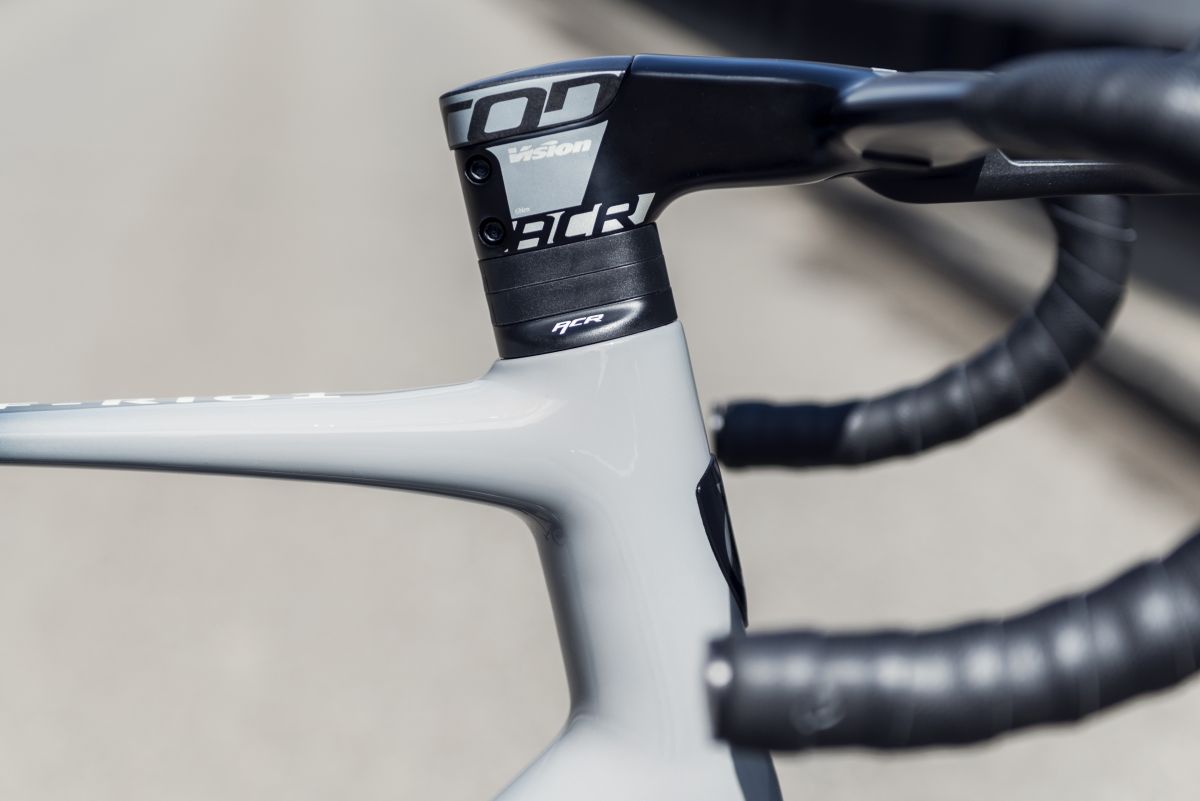

ACR

A fully integrated Aerodynamic Cable Routing solution that routes all cables, wires and hoses internally
This innovative patent-pending system is unique to FSA and is a combination of our knowledge bases in both headset and cockpit development and manufacturing plus our history in aerodynamic development and design. The result is a clean, integrated and aerodynamic cable routing solution for frame and bicycle brands.
The core of the system is built around our headset and integrated cockpit (or stems) that easily allows brands a “plug-in” solution for clean and simple cable routing for their frames. By using standard headset dimensions, the system maintains frame strength and, by routing cables through the headset, it also safely preserves a round steering column that is free of drilling. Additionally, brands have the flexibility to utilize a single frame design at a variety of spec levels simply by adjusting cockpit and headset selection.

BENEFITS
•     37SEC FASTER OVER 45KM COMPARED TO FSA ENERGY ROUND COCKPIT AND STEM
•    AERODYNAMIC, WITH FULLY INTEGRATED CABLE ROUTING
•    NO STEERING ROTATION LIMIT
•    CLEAN DESIGN

SCR

Designed for OEM (Original Equipment Manufacturer) and AM (After Market).

BENEFITS
•    SEMI-INTEGRATED CABLE ROUTING
•    NO ROTATION LIMIT
•    Di2 COMPATIBLE
•    AFTERMARKET AVAILABILITY

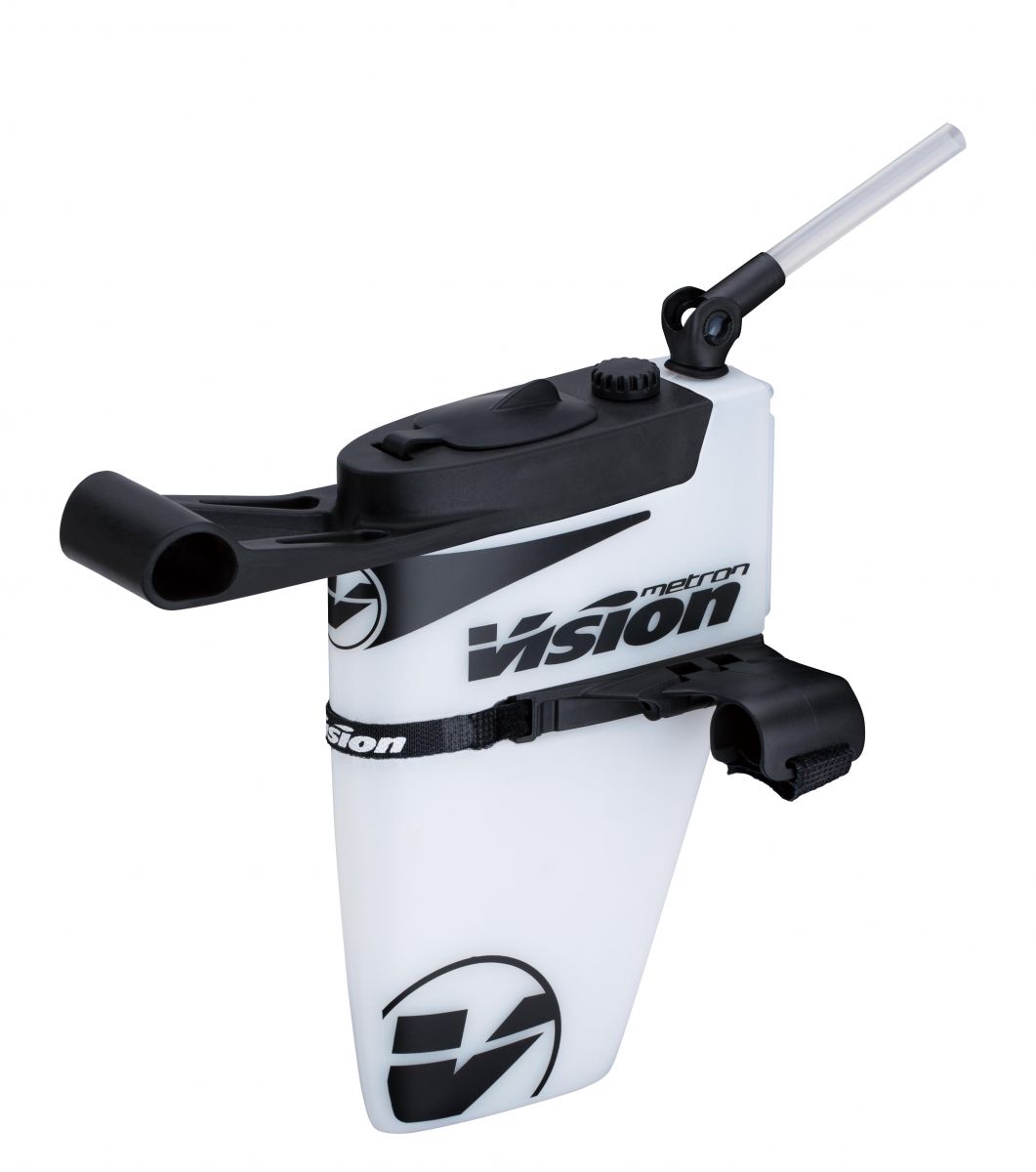

VISION METRON FRONT HYDRATION SYSTEM

The new Metron Front Hydration System offers an increase in volume compared to the previous version (up to 700ml from 600ml) and has an articulated, collapsible straw attachment that enables the rider to easily take a drink at various angles, improving accessibility and convenience. This represents a real positive for the athlete, who might be in the saddle for hours at a time maintaining an aerodynamic time trial position.
The system has an updated design with a new aerodynamic profile, arrived at using extensive CFD software to achieve the greatest aerodynamic efficiency. Meanwhile, it also features Vision’s Drop Bottle System and extension mounts, as well as a detachable Bento box.
The Metron Front Hydration System structure also features a secure mounting bracket compatible with all bike computer head units for greater accessory integration, and adds just 335g to the rider’s bike when fitted. It is available in both white and black colors.

BENEFITS
• Increased volume (up to 700ml)
• Multiple configurations possible
• Detachable box for easy cleaning

TECH SPECS
• CFD refined integrated bottle with bento box and computer mount
• Articulated straw mount to allow precise angles and unobtrusive fold-away
• Patented and removable labyrinth water fill spout for rapid refills without splashing
• Forward computer mount
• Includes Vision Drop Bottle System and Extension Mount

WEIGHT
• 335 grams

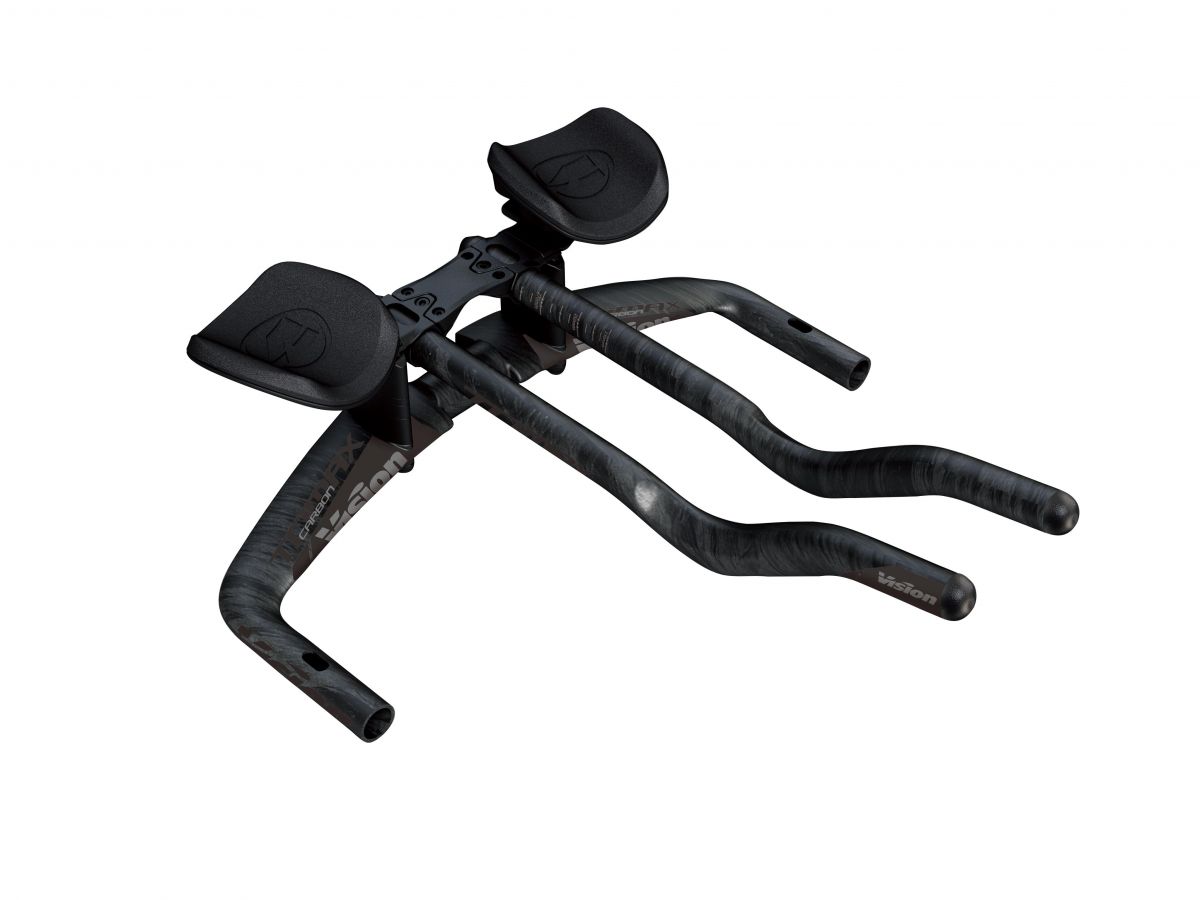

VISION TRIMAX CARBON SI 013 JS-BEND AERODYNAMIC CARBON HANDLEBAR

The Vision TriMax Carbon SI 013 JS-Bend aerodynamic carbon handlebar is equipped with a flip-flop carbon base bar and ergonomic extensions. The ability to extensively adjust reach, stack, extension angle and arm rest positions are the foundation of the TriMax Carbon SI 013 JS-Bend design, and are easily adjustable without the use of bolts.
With the rider in their optimum position, the new handlebar also allows them to mount an internal Di2 junction box for internal routing of cables, preserving maximum aerodynamic efficiency.

BENEFITS
• Full carbon ergonomic extensions, with the possibility of being lengthened and shortened according to the rider’s fit
• Ability to tilt the base bar and choose the stem. This means that the handlebar is compatible with all frames with a 31.8mm diameter handlebar clamp area.
• Ability to extensively adjust reach, stack, extension angle and arm rest positions

TECH SPECS
• Extensive adjustability:
- Stack: 70mm to 145mm (5mm increments)
- Reach: -9mm to -99mm (7.5mm increments)
- Armrest width: 210mm to 360mm (15mm increments)
- Extension length adjustment: 245mm to 385mm
- Extension length: 412mm
- Extension height: 60mm (centre-centre)
- Extension angle: 35° (12° at extension tip)
- Extension width: 80mm (centre-centre)
- Base bar width: 400mm (centre-centre)
- Armrest rotation: 0 - 13°
- Bracket tilt adjustment: 0 - 16°
- Tiltable base bar
• Includes Vision Drop Bottle System and Extension Mount
• Forward computer mount integration
• Internal cable routing-compatible
• Compatible with all electronic shifting systems
• UCI-approved

WEIGHT
• 1,130 grams

VISION SC WHEELSET
Vision SC is the newest range of light and versatile carbon racing wheels, available with a 40mm or 55mm rim depth, and in rim and disc brake formats. They have been developed using extensive wind tunnel testing and on the road with professional cyclists from EF Education First and Israel Cycling Academy, offering a great balance of performance and light weight at a competitive price.
The full carbon rims are TLR tubeless ready, while the alloy freehubs are compatible with both Shimano 10-11 speed and SRAM 12 speed XDR systems. They are hand built to artisanal standards, with direct pull aero bladed spokes and ABS self-locking nipples for reliable performance and a clean rim design.

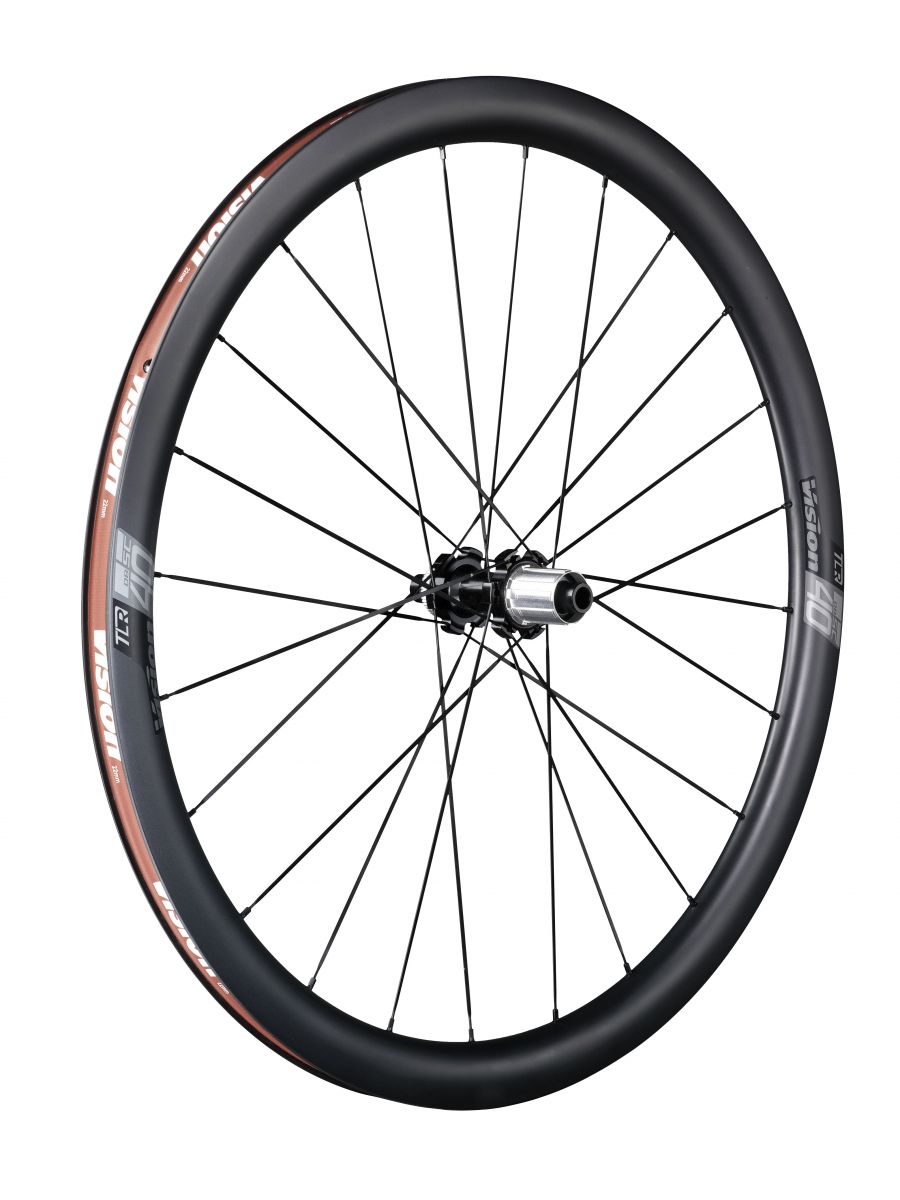

Vision SC 40 DB

BENEFITS
• Full carbon rim
• Disc brake version
• Competitive weight / price ratio
TECH SPECS
• Full carbon 40mm depth rim
• 19mm internal rim width / 24mm external rim width
• Clincher / TLR tubeless ready
• P.R.A. hubs with direct pull spokes
• ISO 6-Bolt and Centerlock rotor mount
• Six sealed cartridge bearings (2F + 4R)
• 2:1 aero bladed spokes 21F / 24R
• ABS self-locking nipples
• Artisan built, entirely by hand
• Shimano 10-11sp , SRAM XDR 12sp freehub

WEIGHT
• 1,556 grams / pair (w/o QR)

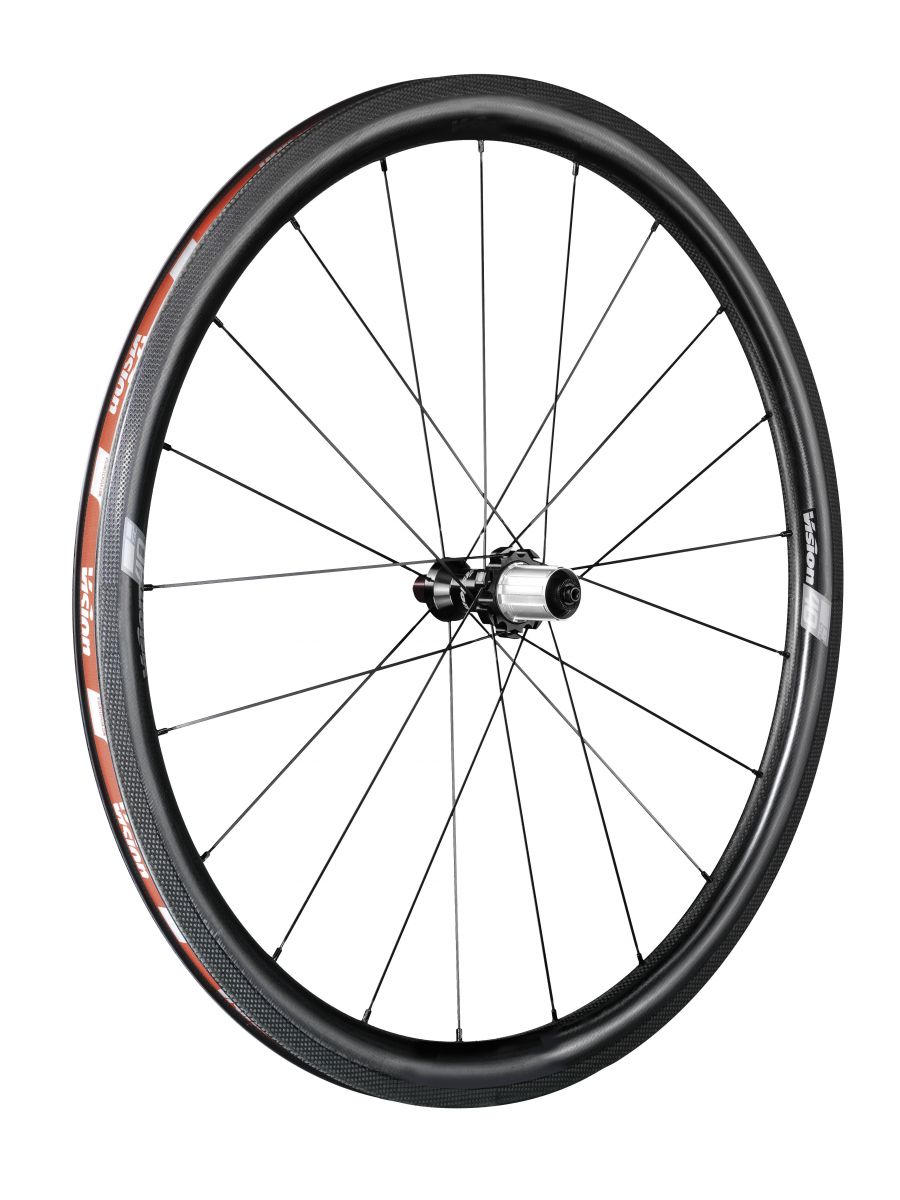

Vision SC 40

BENEFITS
• Full carbon rim
• Rim brake version
• Competitive weight / price ratio

TECH SPECS
• Full carbon 40mm depth rim
• 19mm internal rim width / 24mm external rim width
• Clincher / TLR tubeless ready
• P.R.A. hubs with direct pull spokes
• ISO 6-Bolt and Centerlock rotor mount
• Six sealed cartridge bearings (2F + 4R)
• 2:1 aero bladed spokes 21F / 24R
• ABS self-locking nipples
• Artisan built, entirely by hand
• Shimano 10-11sp , SRAM XDR 12sp freehub

WEIGHT
• 1,410 grams / pair (w/o QR)

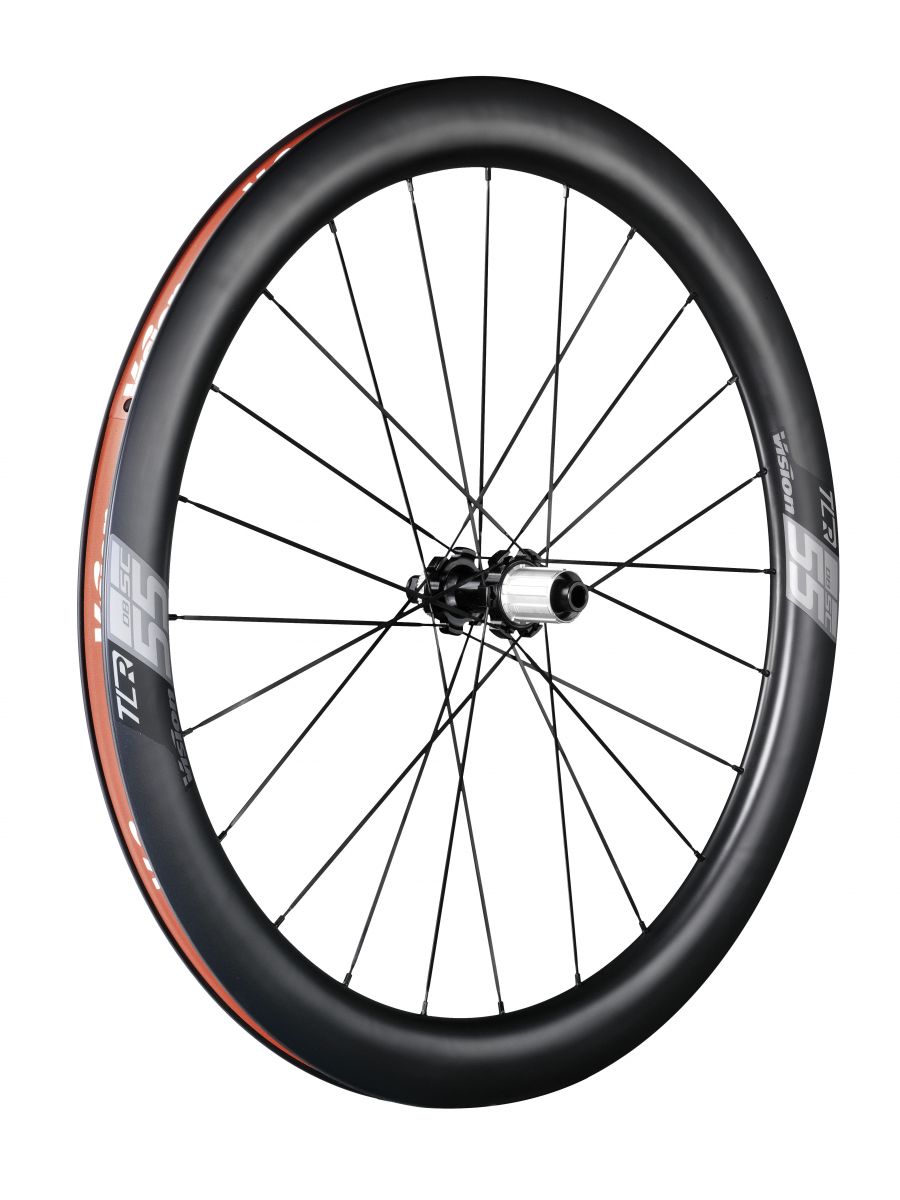

Vision SC 55 DB

BENEFITS
• Full carbon rim
• Disc brake version
TECH SPECS
• Full carbon 55mm depth rim
• 19mm internal rim width / 24mm external rim width
• Clincher / TLR tubeless ready
• P.R.A. hubs with direct pull spokes
• ISO 6-Bolt and Centerlock rotor mount
• Six sealed cartridge bearings (2F + 4R)
• 2:1 aero bladed spokes 21F / 24R
• ABS self-locking nipples
• Artisan built, entirely by hand
• Shimano 10-11sp , SRAM XDR 12sp freehub

WEIGHT
• 1,640 grams / pair (w/o QR)

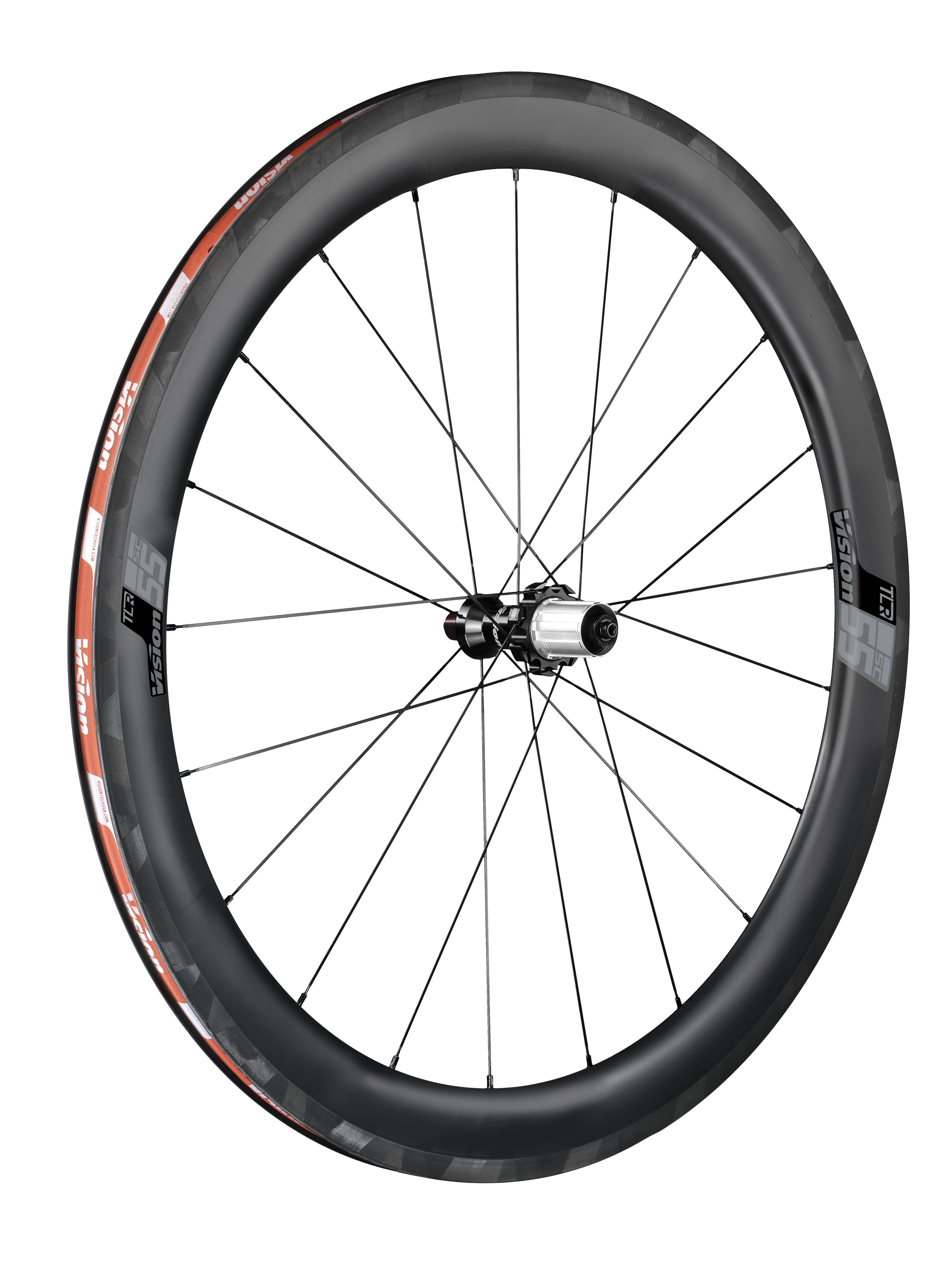

Vision SC 55

BENEFITS
• Full carbon rim
• Rim brake version
• Competitive weight / price ratio

TECH SPECS
• Full carbon 55mm depth rim
• 19mm internal rim width / 24mm external rim width
• Clincher / TLR tubeless ready
• P.R.A. hubs with direct pull spokes
• ISO 6-Bolt and Centerlock rotor mount
• Six sealed cartridge bearings (2F + 4R)
• 2:1 aero bladed spokes 21F / 24R
• ABS self-locking nipples
• Artisan built, entirely by hand
• Shimano 10-11sp , SRAM XDR 12sp freehub

WEIGHT
• 1,510 grams / pair (w/o QR)
